3 Axles 60 Ton Tipping Dump Truck Semi Trailer
Products Description
Side dump semi-trailer is a practical transportation tool. It is mainly used for transporting various materials. The unique side dumping design allows for quick and convenient unloading. This type of semi-trailer has a sturdy construction to ensure durability and stability during transportation. It can handle different types of cargo, such as gravel, sand, and other bulk materials. With its efficient unloading mechanism and reliable performance, it is widely favored in the construction and logistics industries.
Side tipper dump trailers can accommodate various types of cargo, including bulk materials, construction materials. It features a tilting cargo box that allows the cargo to be quickly unloaded by tilting one side through the use of self-weight or a hydraulic system.With its impressive capacity and robust construction, this trailer is ideal for mining, construction, and agricultural projects. The side tipping feature facilitates quick unloading, improving productivity on job sites and reducing turn around times.
Specification
|
Product Name |
Rear Dump Semi-Trailer |
|
Application |
Coal/Mine/Stone Loading |
|
Loading Capacity |
30T-100T(customized) |
|
Axle |
2/3/4* 13/16T FUWA/BPW/Other Brand |
|
Length*Width*Height |
11000mm*2500mm*2800mm (customized) |
|
Cylinder |
model choice is according to the length of cargo box |
|
Floor Plate Thickness |
5mm |
|
Sidewall Thickness |
4mm |
|
OEM/ODM |
Available |
|
Main Beam |
Q345/T700 The height of beam:500mm Upper Plate: 14mm Middle Plate: 8mm Lower Plate: 16mm |
|
Floor |
Steel sheet 4mm thickness or diamond plate |
|
Suspension |
Mechanical/Air suspension |
|
Rim |
8.0/9.0*8/12/16 pieces, steel/aluminum |
|
Tire |
11.00R20/12R222.5* 8/12/16 pieces, Linglong/Triangle/Double-Coin/Bridgestone |
|
Leaf Spring |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
Landing Gear |
28T, JOST |
|
Tool Box |
One piece, 1m*0.5m*0.5m(Size can be choose freely) |
|
King Pin |
#50(2")/#90(3.5"), JOST/Other Brand |
|
Brake Air Chamber |
WABCO RE 6 relay valve |
|
Spare Wheel Carrier |
One set of spare wheel carrier |
|
Electrical System |
24V, 7core socket, lights according to European standards |
Details Images
Tried
Good quality trailer parts are used, includingtraction pin, landing gear, tyres, etc.

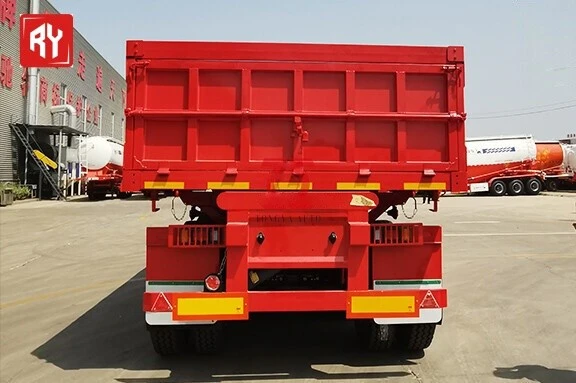

Rear Door
Rear door auto fasten lock eficiency work,adjust able design keep suitable situation,easy maintenance and replace. With the rear safety guards,it is convenient for workers to work.

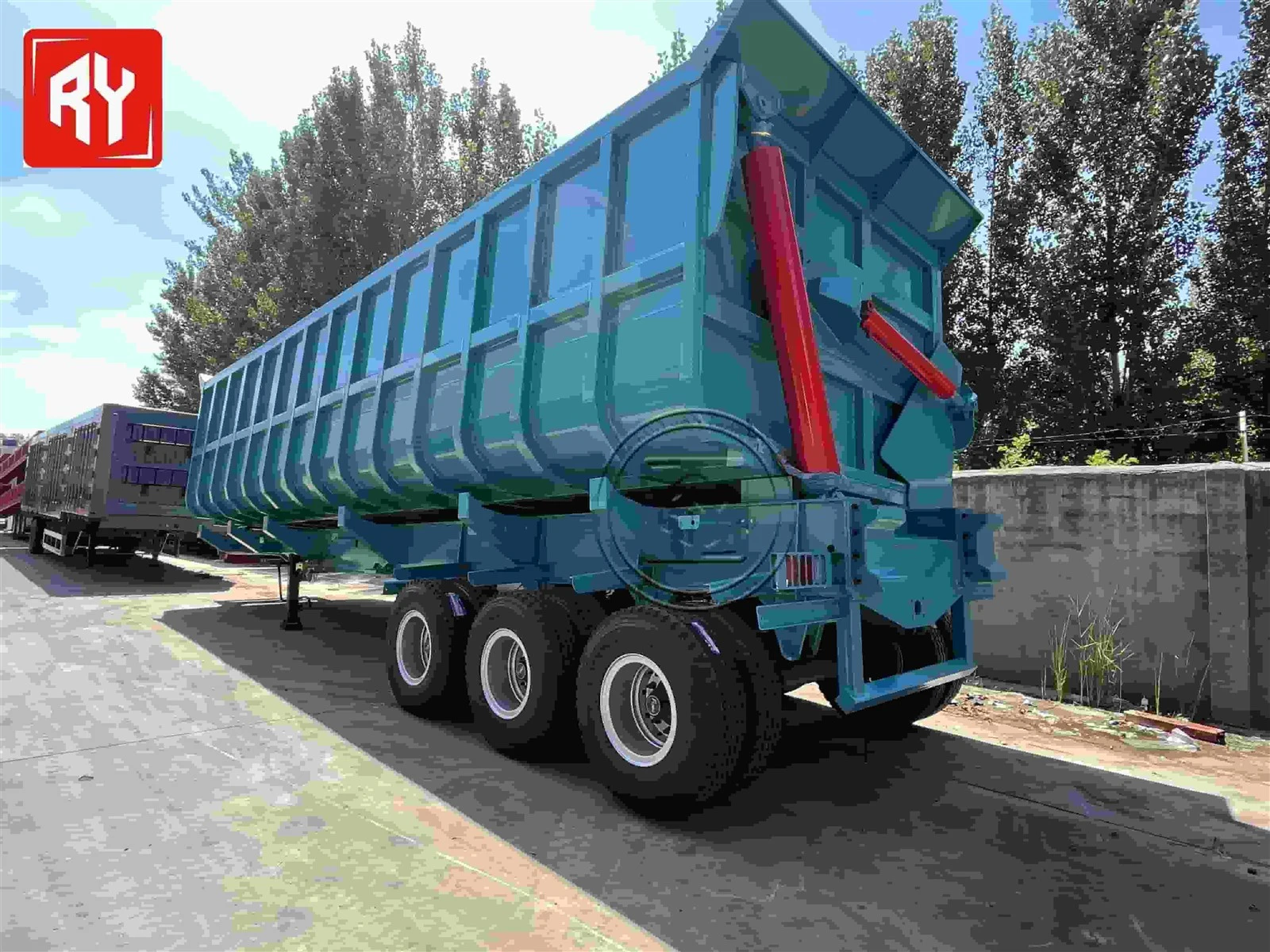

The Tipper Box
For the tipper trailer box, we adopt high strength steel to make itdurable when load the sand or small stones or rocks,especially under the offroad condition.
The Walking System
We adopt BPW/Fuwa/others axles,singleaxle usually can bear 13tons,the heavier theload,the more axles,also,youcan change commonaxle into steerable type.We also match the tires,top brand-Linglong/Triangleetc.All of them is to ensure your safety
Our Advantages
The rear dump trailer can quickly uninstall a large amount of bulk cargo in ashort period of time, such as sand, coal, and building materials, which great-ly improves the efficiency ofunloading and reduced labor costs and timecosts.
The rear dump trailer' s carriage adopts a narrow and narrow and widedesign. Based on the principle of triangle, when the carriage rises to unload.the center of gravity is concentrated at the bottom, increasing stability andreducing the risk of rollover.
The frame and the rear dump trailer beam of the carriage are welded withhigh -quality manganese plates. lt has high strength, high rigidity andtoughness, can withstand heavy loads, and is not prone to permanent de-formation for a long time.
FAQ
Q: Q1. Are you a factory or trading company?
A: We are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.
Q: Q2. Could you accept special design and specification?
A: Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control,or OEM, etc.
Q: Q3. Are you looking for an agent?
A: Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q: Q4. Do you have stock?
A: Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are
some of the spare parts such like tires, axles, stickers, painting etc.
Q: Q5. How to control quality?
A: We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.
