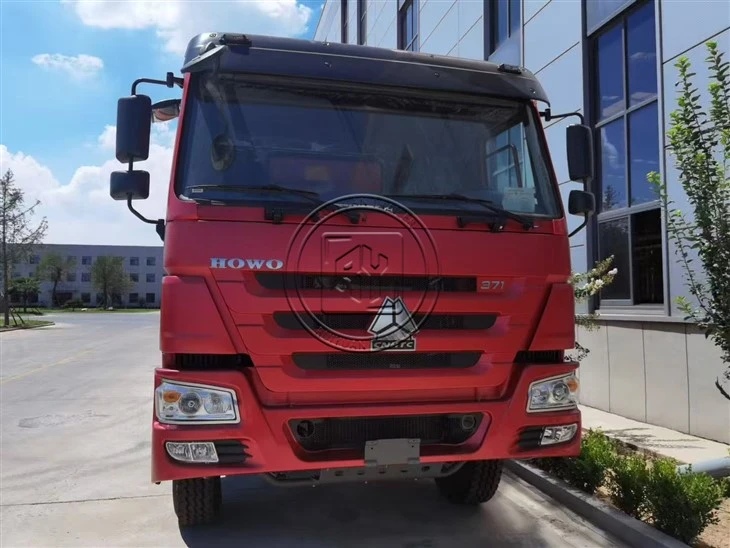

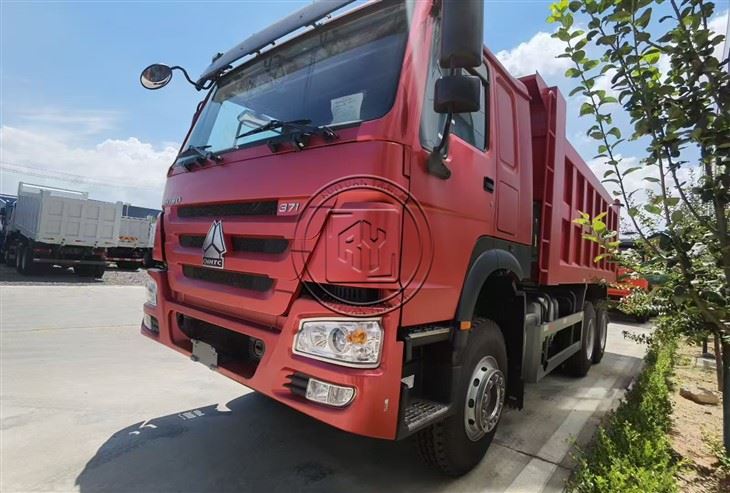

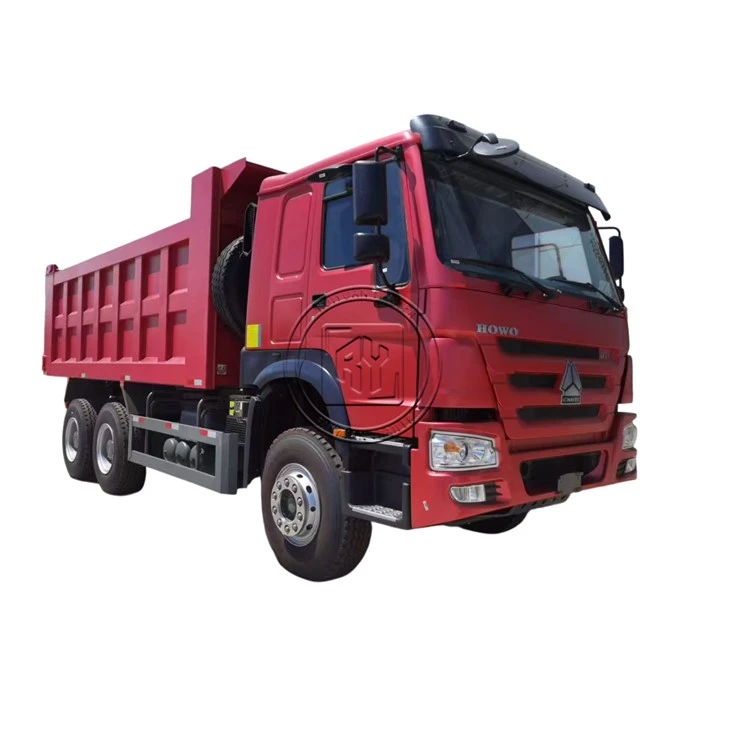

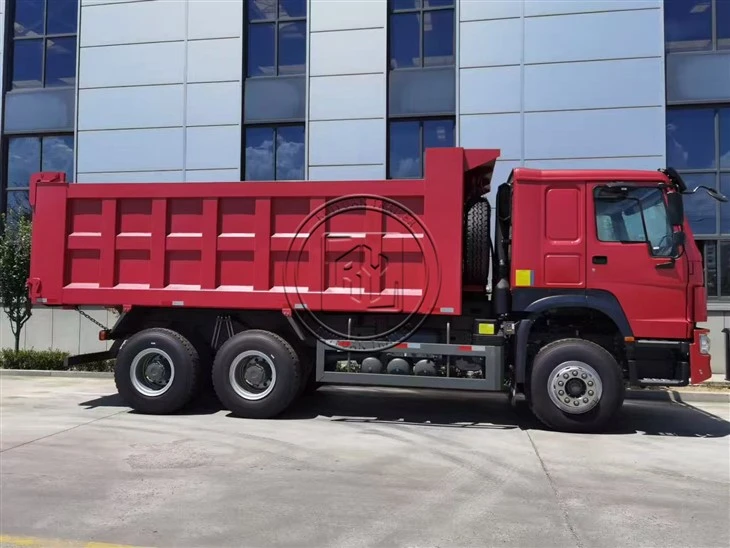

SINOTRUK HOWO TX 400HP 6X4 Dump Truck
25cbm Rear Dumper Truck Tipper Truck Front Lifting Dump Truck
sinotruck Howo 5.3-6.2m Cargo Tank Dump Truck
sinotruck Howo Euro 2 Emission Dump Truck
Product Introduction
The Dump truck produced by Ruiyuan can unload goods quickly and automatically. It can complete the unloading process in a short time, shorten working hours and improve transportation efficiency.It is suitable for a variety of industries.can transport bulk bulk good for sale.
Product Parameters
|
Truck Brand |
SINOTRUK –HOWO |
||
|
Cargo body size (L*W*H, mm(mm) |
5400x2300x1400 |
||
|
Dimension(Lx W xH)(unloaded)(mm) |
8214x2496x3386 |
||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm, |
||
|
Overhang(front/rear) (mm) |
1500/1739 |
||
|
Approaching angle/Departure angle |
19/26 |
||
|
Wheel base (mm) |
3625+1350 |
||
|
Max speed(km/h) |
75 |
||
|
Curb weight(kg) |
12290 |
||
|
Loading Weight(kg) |
30000 |
||
|
Fuel tanker capacity (L) |
500L with locking fuel cap |
||
|
Fuel consumption(L/100km) |
32 |
||
|
Clutch |
Single-plate dry clutch Φ420mm |
||
|
Engine Model |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling |
|
|
Horse Power, max(kw/rpm) |
336HP 247/2200 |
||
|
Emission Standard |
EUROII |
||
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||
|
Auxiliary brake |
Engine exhaust brake |
||
|
Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
|
|
Front axle |
HF9 , Steering with double T-cross section beam |
||
|
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
||
|
Color |
|
||
|
Tire |
12.00R20 11 pieces |
||
|
Electrical system |
Operating voltage |
24V,negative grounded |
|
|
Starter |
24V,7.35KW |
||
|
Alternator |
28V,1500W |
||
|
Batteries |
2*12V.165Ah |
||
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
|||
packaging&Shipping
Our company's products sell well in the international market and are exported to many countries. Africa such as Congo, Kenya, Ghana, Eastern Europe such as Russia, Asia such as Mongolia, the Middle East such asIndia, and South Asian and South American markets.
We currently have a variety of certificates and our products have many relevant certifications. We hope to achieve good cooperation with our customers and provide them with the highest quality products and services

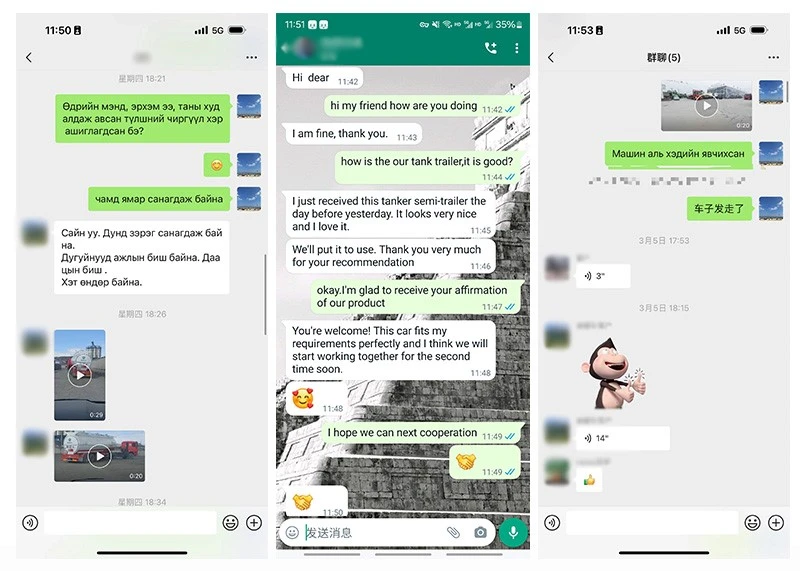

CUSTOMER REVIEWS
fAQ
Q1: Can I paint my logo on the trailer?
A1: Of course, you can send me your company logo, then we will design it.
Q2. Do you test all goods before delivery?
A2: Yes, we do 100% testing before delivery
Q3. What are your delivery terms?
A3: EXW, FOB, CFR, CIF, DDU... As for payment terms, it depends on the total amount.
Q4. What is the average delivery time?
A4: Usually it takes about 10-20 days. The specific delivery time depends on the items and quantity of your order.
Q5. What is the payment term?
A5: T/T or L/C at sight before shipment.
Q6. If the product is damaged during transportation, how to replace it?
A6: First, we should investigate the cause of the damage. At the same time, we will make a claim ourselves or assist the buyer to purchase insurance. Secondly, we will send the replacement parts to the buyer. The person responsible for the above damage will be responsible for the cost of replacement.
