Liquid and Power Transport Trailers
Your Professional Liquid And Power Transport Trailers Supplier
Ruiyuan Semi-trailer Company is a leading enterprise specializing in the production and sales of various tank semi-trailers, dedicated to delivering high-quality and high-performance transportation solutions to global customers.
Advanced Equipment
Equipped with state-of-the-art production facilities and modern production lines, complemented by advanced customized manufacturing technology, the company ensures both the efficiency and superior quality of its products.
Competitive Pricing
With a professional procurement and costing team, we strive to optimize costs while ensuring profitability, thereby offering highly competitive pricing to our valued customers.
Customized Service
Upon receiving your requirements, our experienced engineering team will promptly provide you with comprehensive and optimized customized solutions tailored to your specific needs.
Quality Control
In terms of quality assurance, the company adheres strictly to industry standards and norms, utilizing cutting-edge testing equipment to ensure consistent product quality and maintain an excellent reputation in the market.
Parameter
|
Feature: |
Carry fuel,oil,petroleum |
|
Dimension(L*W*H): |
11600*2500*3250mm(42,000I)Dimension(L*W*H) |
|
Material: |
Aluminum |
|
Compartment: |
8 |
|
Capacity: |
42,000l |
|
Tare Weight(Kg): |
7,000kg |
|
Kingpin: |
Bolt-in 3.5" |
|
Landing Gear: |
19" |
|
Tire Size: |
11R22.5(13 sets) |
|
Rim Size: |
9.00*22.5(13 sets) |
|
Axle: |
FUWA 13 tons 3 axles |
|
Leafs Spring: |
Fuwa brand with 8pcs of leafs spring |
|
Brake System: |
RE 4 relay valve |
|
Manhole: |
Aluminum alloy o500mm (20")manhole with aluminum alloy cover;with breather valve |
|
Discharge Valve: |
Aluminum alloy discharge valve with cover |
|
Foot Valve: |
Pneumatic control DN80 aluminum alloy foot valves |
|
Pneumatic Control System: |
1set pneumatic control combined switch/1unit emergency switch |
|
Discharge Hose: |
2 units 3"×6m factory PVC hose with quick coupling on both ends |
|
Vapor Recovery &Overfill System : |
Optional |
|
Fire Extinguisher Carrier: |
2 units at the left of rear of tanker,include 2 units 8kg dry powder type fire extinguisher inside |
|
ElectricSystem: |
Oneunitof24V7-pin-ISOstandardsocket;withbrakelight,tumn,light,reverselight,sidelight,reflector,fog light;one set of 6-pin standard cable |
|
Paint: |
TwO-component paint |
Types of Liquid And Power Transport Trailers
The liquid and power transport trailers produced by our company mainly include the following types:
Aluminium Fuel Tanker
An aluminum fuel tanker is a type of road tanker designed to transport fuels like gasoline, diesel, and other light oils. These tankers are made from aluminum alloy, typically 5083 or 5454, due to its lightweight nature and high strength. This design reduces the overall weight of the vehicle, leading to improved fuel efficiency and a larger payload capacity.

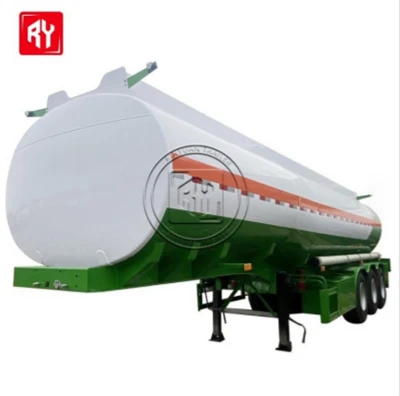

Carbon Steel Fuel Tank Trailer
A carbon steel fuel tank trailer is a type of truck-drawn trailer designed to transport large quantities of fuel (like gasoline, diesel, or other petroleum products). These trailers are typically constructed from carbon steel, a relatively durable and inexpensive material that meets the requirements for transporting fuel.

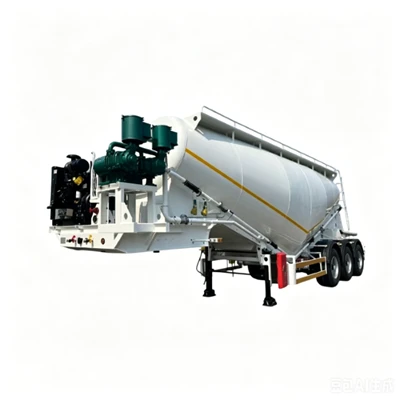

Bulk Cement Trailer
A bulk cement trailer (also called a cement tanker or pneumatic trailer) is a specialized piece of equipment designed to transport cement and other dry, powdered materials in bulk. These trailers are typically made of steel or aluminum and are equipped with a system for pneumatically unloading the material at the destination.
Asphalt Tank Trailers
Asphalt tank trailers are specialized semi-trailers designed to transport hot asphalt, also known as bitumen, to construction sites and other locations. These trailers are typically equipped with insulation and heating systems to maintain the asphalt's liquid state during transit, preventing it from solidifying.
Chemical Tank Trailer
A chemical tank trailer is a specialized semi-trailer designed to transport bulk liquids, often hazardous chemicals, safely and efficiently. These trailers are typically made of stainless steel or other corrosion-resistant materials and are built to withstand the pressures and potential corrosiveness of the materials they carry.
Features of Liquid And Power Transport Trailers
The materials used to build liquid and power transport trailers play a significant role in their performance and durability. For example, aluminum is lightweight and resistant to corrosion, making it ideal for transporting certain liquids and dry goods. Stainless steel, on the other hand, is more durable and resistant to harsh chemicals, which is why it’s often used in chemical liquid and power transport trailers. The right material choice helps ensure that the trailer can withstand the weight of the cargo, but also protects the contents from contamination and extends the trailer’s lifespan.
Safety is a top priority when it comes to liquid and power transport trailers, especially considering the variety of cargo they transport. They come equipped with essential safety mechanisms like:
● Pressure Relief Valves: Essential for preventing dangerous pressure buildup inside the tank, especially when shipping volatile liquids or gases.
● Spill Containment: Many trailers include secondary containment systems or special valves to contain spills in case of an accident.
● Insulation: Cryogenic and fuel tank trailers use insulation to maintain the required temperature of their cargo. Whether it’s keeping liquefied natural gas at a certain temperature or ensuring the stability of sensitive chemicals, insulation is key for maintaining product integrity during bulk shipping.
Finding the right tanker for your shipment can be more difficult than it seems. Tanker capacity isn’t just about size—it’s about matching the trailer to the specific needs of your cargo. Different materials require different configurations, and availability can be a challenge when trying to align equipment with tight timelines or specialized requirements.
Features of Liquid And Power Transport Trailers
Volume and Weight Requirements
The volume of your liquid and power freight helps the carrier know what tank trailer size, or how many trailers to bring. You and the carrier should be clear on the volume requirements so that miscommunications don’t lead to losses for you or the carrier. And although we don’t often mention the weight of the tank trailer as much as volume, it is still very important. Because according to the US Department of Transportation (USDOT), the gross weight of any vehicle on a commercial road must never exceed 80,000 lbs. Because of this limit, the volume of a very dense liquid you would carry at once in a trailer tanker would be lower than the volume of light liquid. But just to be safe, never load more than 45,000 lbs on the truck at once.
Pumps and Compressors
Pumps and air compressors are two main methods of loading and unloading liquid and powers into and from tank trailers. Pumps suck the liquid out of the tank while air compressors rely on pressure to force out the liquid from the tank. However, you have to be careful to not use air compressors for flammable liquids. It could cause static electricity to build up and cause a spark. Instead, pumps are better for loading and unloading flammable liquids. But pumps are not perfect as well. They can corrode, making pumps useless for corrosive liquids.
Temperature Requirements
The temperature requirement of every liquid and power should be known and taken into consideration during transit. Otherwise, the shipping of temperature-sensitive materials under the wrong temperature conditions could lead to revenue losses on the part of the shipper and the carrier. Knowing the temperature requirements of liquid and powers is mostly important for the shipping of liquids like oils and molten naphthalene, which solidify at low temperatures. Unloading these liquids in their solidified states could require extra cost and labor. So, it is best to communicate the in-transit temperature requirement of a liquid and power with the carrier to help them know what tanker types and equipment to bring to the party.
Customization Options
Size
1
>>
Carrying capacity
2
>>
Tank body materials
3
>>
Loading and unloading equipment
4
>>
Color
5
Packaging and Shipping
|
Packaging |
Polish with wax before shipping. Nude packing. |
|
Shipping |
We will provide you with the best ocean shipping solution to reduce transportation costs and ensure timely delivery of goods. |
Our Factory
The production base of Ruiyuan Semi-trailers is located in an industrial park with convenient transportation. The factory area is spacious, and the production equipment is advanced.
Our Service
Financing Services
A variety of financial services are provided to customers, including vehicle purchase loans, installment payments, etc., to help customers reduce the purchase cost and achieve flexible payment plans.
Technical Support
Comprehensive technical support is provided to help customers understand the applicable scenarios and advantages of different types of semi-trailers, ensuring that their purchasing decisions are reasonable.
Installation and Debugging
Professional installation and debugging services are provided to ensure that all functions of the semi-trailer operate normally, the vehicle meets safety standards, and customers can start using it without worry.
Technical Support and Training
Professional training is provided for vehicle owners and drivers to ensure that the users can master the operation skills and maintenance key points of the semi-trailer proficiently. Ruiyuan also provides regular technical support, including operation manuals, online help, etc., to answer the technical problems encountered by customers during the use process.
Spare Parts Supply
Original spare parts are provided for guarantee. When customers repair or replace spare parts, they can obtain high-quality spare parts produced by Ruiyuan to ensure the performance and safety of the vehicle.
Product Upgrades and Modifications
Ruiyuan also provides modification services for semi-trailers, such as adding additional vehicle-mounted equipment, increasing additional load capacity, etc., to ensure that the semi-trailer meets the changing transportation needs.
Quality Follow-up and Customer Feedback
Ruiyuan will regularly follow up with customers, collect usage feedback, promptly identify potential problems and make improvements to enhance the quality of products and service levels.
