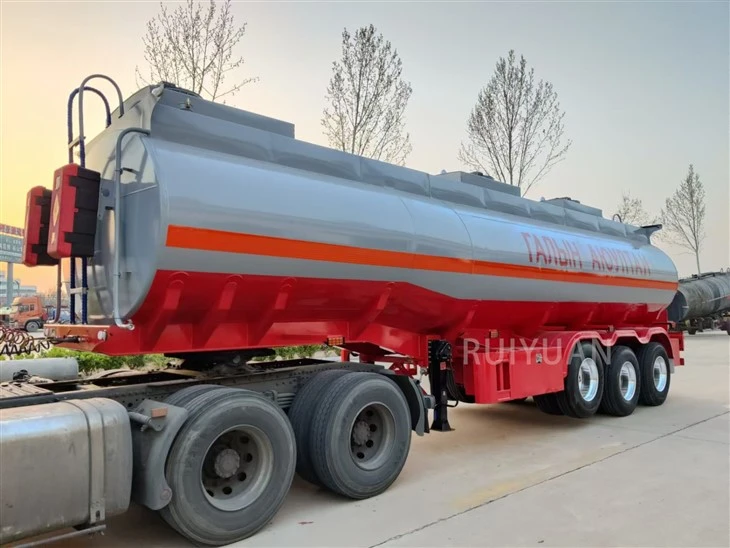

32000 Liters Oil Tanker Trailer
2. Axle: 3/4*45 tons capacity (OCT, FUWA, BPW or other brands)
3 .Suspension: mechanical suspension (optional) air/bogie suspension
4. plate spring: 10 (airbag increasing optional)
5. tires: 12 r22. 5, 11 R22.5, r22 315/80. 5385/65 r22. 5 (size and brand optional)
6. rim: 9.00-22.5, 8.25-22.5, 11.75 22.5 (its) His size is optional)
7. kingpin :2"/3.5" bolt type, SAE standard (optional type welded on)
8. landing gear: 28 tons two-speed (JOST or equivalent brand)
Product Parameters
| Product specification parameter | |
| Material: | Carbon steel/stainless steel/Aluminum |
| Axle: | 3/4*45 tons capacity (OCT, FUWA, BPW or other brands) |
| Suspension: | mechanical suspension (optional) air/bogie suspension |
| plate spring: | 10 (airbag increasing optional) |
| tires: | 12 r22. 5, 11 R22.5, r22 315/80. 5385/65 r22. 5 (size and brand optional) |
| rim: | 9.00-22.5, 8.25-22.5, 11.75 22.5 (its) His size is optional) |
| kingpin : | 2"/3.5" bolt type, SAE standard (optional type welded on) |
| landing gear: | 28 tons two-speed (JOST or equivalent brand) |
| tank: | 5 mm -10 mm/custom |
| end plates: | 6 mm -20 mm/custom |
| man hole: | 300 mm -500 mm/custom |
| Brake system: | dual line brake system, dual air chamber, brake valve, 40L air tank; ABS EBS optional |
| Electrical: | LED light, 7 way, 24V |
| Painting: | Blasting and cleaning rust, 1 coat of plain paint, 2 coats of paint |
| Accessories: | Toolbox, fuel tank, spraying system optional |
Product images
Carbon Steel Tanker Trailer Product Description
Here is an introduction to the characteristics of a 32,000 - liter fuel tanker trailer and the reasons for choosing it:
1. Precise Measurement and Monitoring
It is equipped with a high-precision liquid level measurement system and advanced monitoring equipment, which can accurately display parameters such as the liquid level, temperature, and density of the oil products in the tank in real time, allowing operators to accurately grasp the storage and transportation status of the oil products. At the same time, through remote monitoring technology, customers can obtain real-time information about the location, driving status, and oil product information of the oil tank trailer in the office or other locations, which is convenient for dispatching management and safety monitoring, and effectively avoids oil product losses and potential safety hazards during transportation.
2. Rapid Conversion and Multi-purpose Use
It adopts a unique quick-connect joint and a detachable internal structure design, enabling the oil tank trailer to complete the conversion operation of different oil products within a short period of time, such as switching from transporting gasoline to transporting diesel. This design not only improves the vehicle's utilization efficiency but also reduces the cost for customers to purchase multiple specialized oil tank trucks. In addition, this oil tank trailer can also be used to transport some other liquid goods with similar properties, such as chemical raw materials, through simple modification, and has strong multi-purpose functionality, providing convenience for customers to expand their business scope.
Tank truck safety
The tank is strong
it is made of high-quality materials such as high-strength steel, such as 4-6mm thick carbon steel national standard plates, and some also use stainless steel, aluminum alloy, etc. It has strong pressure resistance, impact resistance and corrosion resistance, and can effectively prevent tank damage and leakage.
Wave-proof design
There are multiple wave-proof baffles in the tank, which can reduce the impact of the oil in the tank when the vehicle is driving, reduce liquid sloshing, improve the stability of the tank and the safety of vehicle driving, and reduce the risk of center of gravity shift and rollover caused by liquid sloshing.
Complete safety devices
equipped with safety equipment such as safety valves, fire-fighting equipment, static elimination devices, and overflow prevention sensors. The safety valve can automatically release pressure when the pressure in the tank is too high; the static elimination device can prevent static electricity accumulation from causing fire or explosion; the overflow prevention sensor can prevent oil from overflowing during the filling process.
FAQ
Q: What materials are generally used for the tank of an oil tank trailer?
A: High-strength steel or lightweight aluminum alloy is commonly used. Steel has high strength, while aluminum alloy is lightweight and corrosion-resistant, which can improve transportation efficiency and the service life of the tank.
Q: What is the internal structure of the tank of an oil tank trailer?
A: There are compartment partitions inside the tank, which can transport multiple media at the same time; each compartment is equipped with anti-wave boards to enhance stability and reduce the impact of oil.
Q: What safety protection systems do oil tank trailers have?
A: They include anti-static devices (to conduct away static electricity), emergency pressure relief valves (to automatically relieve pressure when pressure is abnormal), anti-wave boards (to reduce sloshing); some are equipped with explosion-proof barrier technology to reduce the risk of leakage and explosion.
