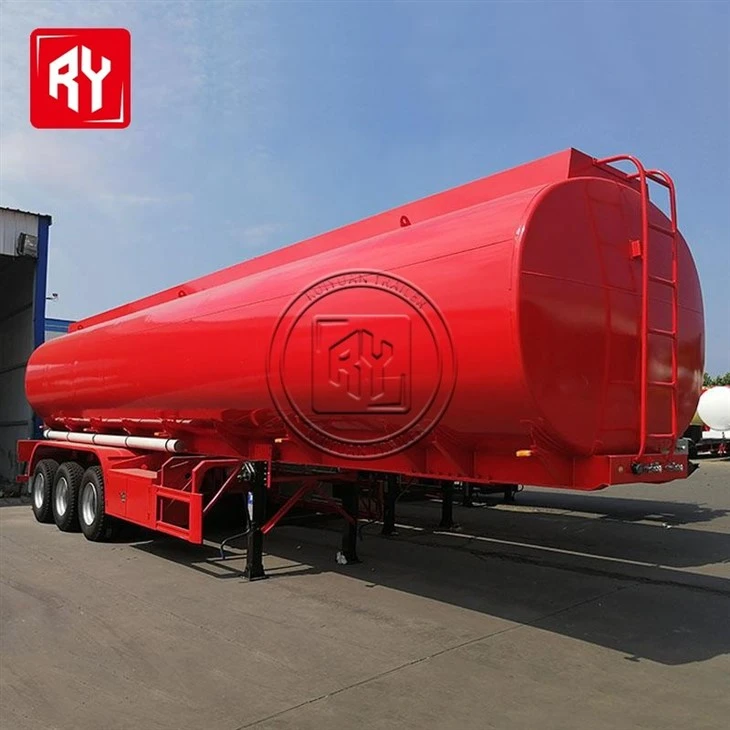

Practical 3-axle Oil Tanker 40000L
Made of aluminum alloy, it is significantly lighter than traditional carbon steel tank trailers. For example, the three-axle semi-trailer of the Aluminum Traveler series is 3 tons lighter than similar steel vehicles by using aluminum alloy and optimized design, which can effectively reduce vehicle fuel consumption and improve transportation efficiency.
Delivery time: 15-25 days
Tank volume: 40000L-45000L
Application: Trailers can be used to transport various fuels such as gasoline, diesel, kerosene, etc.
Products Description
This aluminum alloy oil tank semi-trailer is constructed with high-quality aluminum materials as the core, featuring both lightweight and high-strength advantages. Compared to traditional steel tanks, it significantly reduces weight, which can increase the effective cargo capacity within the compliance range, and greatly optimizes fuel economy and transportation efficiency.
Aluminum material inherently possesses excellent corrosion resistance, effectively resisting the erosion of various fuels (gasoline, diesel, kerosene, etc.), significantly prolonging the tank's service life, reducing maintenance costs, and ensuring long-term stable operation.
The tank adopts a scientific multi-chamber separation and anti-wave plate design, which can reduce liquid shaking during transportation, improving driving stability and safety. Equipped with efficient top or bottom loading and unloading systems, the operation is convenient and smooth, enabling quick completion of loading and unloading operations and shortening turnaround time.
The entire vehicle is strictly manufactured in accordance with international safety standards such as ADR and ASME, and all performance indicators reach the industry-leading level. Whether for long-distance trunk transportation or regional distribution, this aluminum alloy oil tank semi-trailer can provide economic and reliable transportation solutions for fuel logistics enterprises, thanks to its lightweight, corrosion-resistant, and high-efficiency characteristics.
It has a reasonable tank design, and some tanks are equipped with baffles inside, which can make the flow of liquid in the tank more uniform when the vehicle is driving or braking, reduce the impact of the liquid on the tank, and reduce the risk of vehicle loss of control due to liquid sloshing. Equipped with various advanced loading and unloading equipment, such as bottom loading and unloading ports, quick connectors, etc., to facilitate the loading and unloading of goods and shorten the loading and unloading time. It can be used to transport various fuels such as gasoline, diesel, kerosene, etc., and is an important tool for fuel transportation in the petrochemical industry.
Our Products
Product parameters
| Trailer weight | 9500kg |
| Size | 11000mm/12000mm*2500mm*3850mm |
| Volume | 40M3/45M3 40000L |
| Tank body | Aluminum 5mm |
| End plate | Aluminum 6mm |
| Axle | 3 axle Fuwa 13T /16T |
| Suspension | leaf spring suspension |
| Leaf spring | 10pcs/12pc |
| Manhole cover | 500mm manhole cover with breath valve .2 sets |
| Tire | 12R22.5 12pcs Triangle/ Double coin/ Double star |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Discharge valve | 4"disc valve APl |
| Discharge pipe | 4"seamless steel tube |
| Bottom valve | 2 set |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Compartment | Single |
| Oil gas recovery system | Optional |
| Anti overflow system | Optional |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light,two fire extinguisher |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Packing and shipping
We have established trade relations with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions, and our experienced team can choose the most suitable transportation methods for different customers, including container, ro-ro and bulk transportation, balancing safety and economic costs.
FAQ
1. What is the delivery date?
-Usually 30-45 days after we receive your deposit. The specific delivery time depends on the items and quantity of your order.
2. What is the payment method?
-30% T/T as deposit, 70% T/T paid before the product leaves our factory. We will show you photos and videos of the products before you pay the balance.
3. Can our vehicle/trailer work with your tractor head?
- 90% of trucks on the market can be matched with our vehicles, such as Howo, Shakman, Beiben, Volvo... - If it is another brand of truck head, please inform our sales manager before placing an order.
4. Does your company have its own factory?
-Yes, we have been in this business for twenty years, have our own factory, and have many loyal customers in China.
5. Are you looking for an agent?
-Yes, we are looking for agents all over the world and will provide our agents with better prices, you are welcome to contact us for further discussion.
