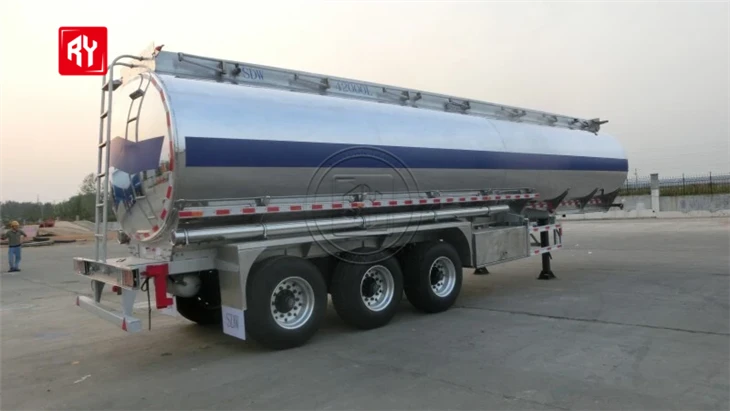

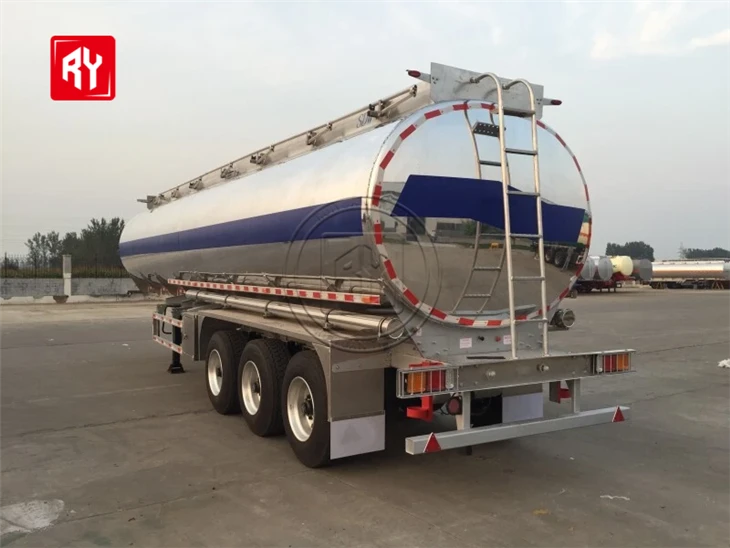

Three-axle 40000L mirror aluminum alloy oil tank semi-trailer
video

Three-axle 40000L mirror aluminum alloy oil tank semi-trailer

Category Aluminum Tanker Trailers
Made of aluminum alloy, it is significantly lighter than traditional carbon steel tank trailers. For example, the three-axle semi-trailer of the Aluminum Traveler series is 3 tons lighter than similar steel vehicles by using aluminum alloy and optimized design, which can effectively reduce vehicle fuel consumption and improve transportation efficiency.
Delivery time: 15-25 days
Tank volume: 40000L-45000L
Compartments:5
Application: Trailers can be used to transport various fuels such as gasoline, diesel, kerosene, etc.
Send Inquiry
Product Introduction

Products Description

Aluminum alloy has good corrosion resistance and oxidation resistance and can withstand the erosion of various harsh environments and chemicals, reducing the maintenance cost and repair frequency of vehicles and extending the service life of vehicles. Generally, it has a larger volume, can carry more goods, reduces the number of transportation times, and improves transportation efficiency. Common volumes are 40000L, 45000L, etc.

20250619150959 1

It has a reasonable tank design, and some tanks are equipped with baffles inside, which can make the flow of liquid in the tank more uniform when the vehicle is driving or braking, reduce the impact of the liquid on the tank, and reduce the risk of vehicle loss of control due to liquid sloshing. Equipped with various advanced loading and unloading equipment, such as bottom loading and unloading ports, quick connectors, etc., to facilitate the loading and unloading of goods and shorten the loading and unloading time. It can be used to transport various fuels such as gasoline, diesel, kerosene, etc., and is an important tool for fuel transportation in the petrochemical industry.

20250619151001 1

Picture display

20250619151000 1

202506191510011 1

091

Product parameters

Packing and shipping

We have established trade relations with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions, and our experienced team can choose the most suitable transportation methods for different customers, including container, ro-ro and bulk transportation, balancing safety and economic costs.

01

04

06

07

08



Product specification parameter
Material: Aluminum
Axle: 3/4*45 tons capacity (OCT, FUWA, BPW or other brands)
Suspension: mechanical suspension (optional) air/bogie suspension
plate spring: 10 (airbag increasing optional)
tires: 12 r22. 5, 11 R22.5, r22 315/80. 5385/65 r22. 5 (size and brand optional)
rim: 9.00-22.5, 8.25-22.5, 11.75 22.5 (its) His size is optional)
kingpin : 2"/3.5" bolt type, SAE standard (optional type welded on)
landing gear: 28 tons two-speed (JOST or equivalent brand)
tank: 5 mm -10 mm/custom
end plates: 6 mm -20 mm/custom
man hole: 300 mm -500 mm/custom
Brake system: dual line brake system, dual air chamber, brake valve, 40L air tank; ABS EBS optional
Electrical: LED light, 7 way, 24V
Painting: Blasting and cleaning rust, 1 coat of plain paint, 2 coats of paint
Accessories: Toolbox, fuel tank, spraying system optional
